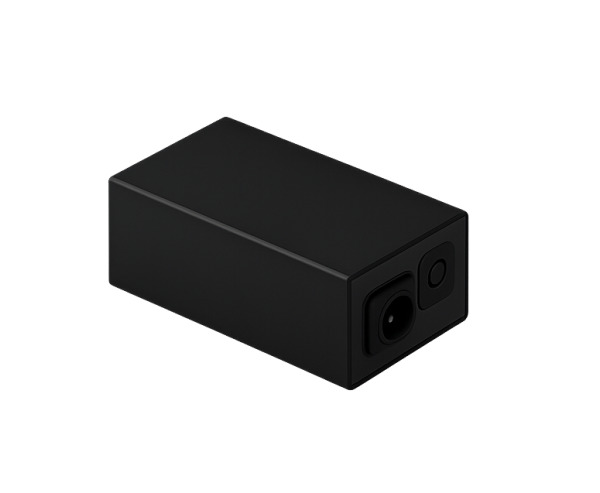

Extension Box

The Extension Box is a compact, integrated unit designed to enable wireless and mobile deployment of Noccela UWB anchors. Acting as a central hub for power delivery and data connectivity, it simplifies the setup of temporary or portable positioning systems.
Equipped with a PoE injector, Wi-Fi adapter, and step-up converter, the Extension Box draws power from an external battery and distributes it efficiently to connected anchors via Power over Ethernet. Wireless communication with an LTE router ensures seamless data transmission with the Noccela cloud without the need for fixed infrastructure.
Ideal for demo kits, mobile installations, or rapid deployment scenarios, the Extension Box enhances flexibility while maintaining reliable performance in real-time location systems.
Deployment & Use Cases
- Mobile UWB anchor deployment without fixed infrastructure
- Demo kits for customer trials and proof-of-concept setups
- Temporary installations at events, exhibitions, or field sites
- Dynamic environments such as construction sites, or emergency response zones
- Rapid prototyping and field testing of positioning systems
- Flexible mounting on tripods, carts, or temporary structures
- Acts as a bridge between power source (battery), network (LTE router), and positioning hardware (Anchor)
- Compact and modular design suitable for mobile deployments or demo kits
- Can operate in environments without fixed infrastructure
- Wireless connectivity and battery power make it ideal for temporary setups
- USB-C input receives power from an external battery
- In-built Step-Up Converter to boosts voltage to required for the anchor
- In-built PoE Injector to supply Power over Ethernet (PoE) to the connected anchor
- Consists a Wi-Fi Adapter to enable wireless communication with an LTE router
- PoE output provides both power and data to the Anchor via a single Ethernet cable
- Components: PoE Injector, Wi-Fi Adapter, Step-Up Converter
- Ports: USB-C Power Input, RJ-45 PoE Output
- Dimensions: (L x W x H) 119 x 66 x 36 mm (~4.7 x 2.6 x 1.4 in)
- Weight: ~0.5 kg
- Environment: Indoor/temporary sheltered outdoor
- Power Consumption: ~6 W
- Power Source: External rechargeable battery (via USB-C)
- Battery Compatibility: 5V USB power banks, minimum 2A output
- Operating Environment: Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F), Humidity: 20–95% RH, non
- Connectivity: Wi-Fi to external LTE Router, PoE to Anchor
- Mounting Options: Ziptie anchors, adhesive mounts, tripod-compatible
- Color: Black
