Signalling Flash

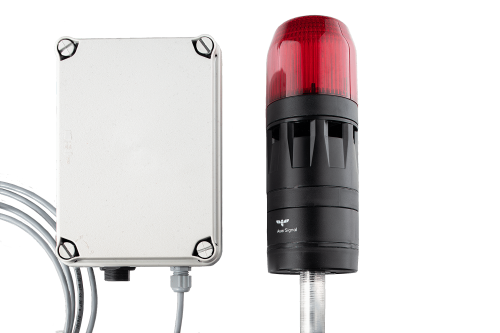

Use Noccela signaling flash for warning, notifying, or status reporting use cases that are complimentary in all Noccela UWB-based solutions. For example, safety warnings against moving forklifts, moving cranes, and high voltage test benches, communicating permissions to resume safe operation, and Andon status reporting in lean production. The device comprises two units; the controller, and signaling, which are attachable to almost anywhere. The controller unit works as the communication bridge between the Noccela cloud and the signaling unit.
- The singnaling unit with 2 module types avaliable; LED light, and tone.
- Choise of signaling module combinations; 2 LED light, or 1 LED light and a tone module.
- Choise of LED colors; amber, red, clear, green, yellow or magenta.
- Easily configurable signaling unit with physical DIP switches.
- Configuration features avaliable; 2 flashing modes, 8 tone modes, and 2 tone volumes.
- PoE operable controller unit.
- Secure and reliable
- Dimension (H x D X H): 120 x 165 x 75 mm (4.7 x 6.5 x 3.0 in) controller unit
- Dimension (D X L): 70 x 260 mm (2.8 x 10.2 in) singaling unit
- Environment: Indoor, operating temperature 0 oC ~ 50 oC (32 oF ~ 122 oF), and 20 ~ 95% RH non-condensing
- Weight: 0.75 kg
- Attachment: Signaling unit anywhere on a tube mounting, connected to the controller unit via a signaling cable.
- Power: PoE to the controller unit, total consumption 2.3W
- Certifications: CE, FCC (pending) & ISED (pending)
